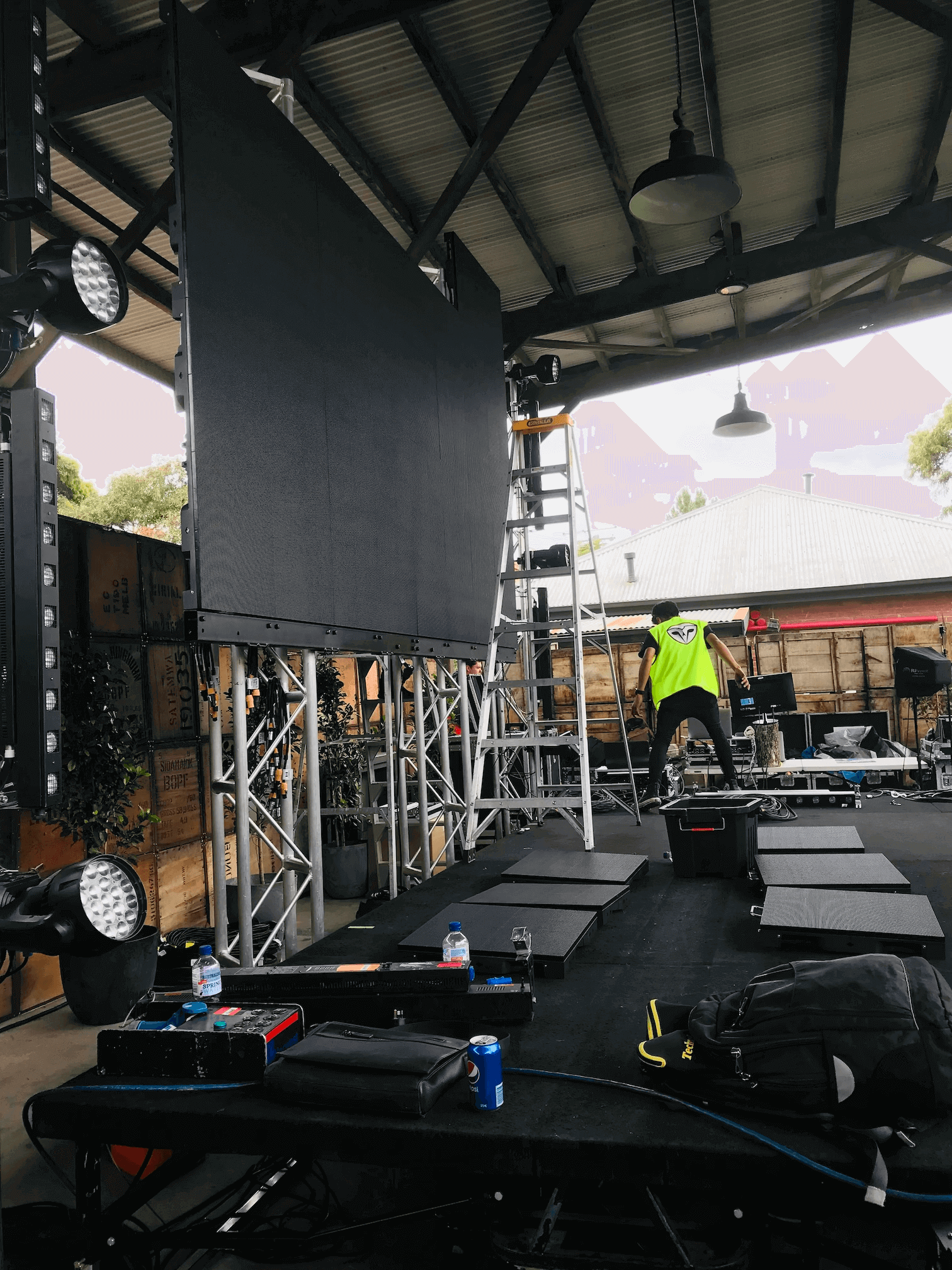

Ground stacked 3mm LED screen build in progress
LED screens can be used in a variety of settings, from corporate events to large outdoor concerts, but the requirements for each are very different. For a corporate event, the focus is often on clarity and sharpness, so a smaller pitch size LED screen may be more suitable. This allows for clear and legible text, as well as high-quality images and videos. On the other hand, for a large outdoor concert, a larger pitch size may be preferred to ensure that the image is visible from a distance. The brightness of the screen is also important for outdoor events, as it must be able to overcome the glare of sunlight or other outdoor lighting. Additionally, the durability of the screen is also a concern for outdoor events, as it must be able to withstand weather conditions such as wind and rain. Overall, while LED screens can be used in a variety of settings, the specific requirements will vary depending on the context in which they are used.
The pitch size of an LED screen refers to the distance between the centre of one LED light to the centre of the next LED light, measured in millimetres. It is an important factor that affects the image quality of an LED screen. The smaller the pitch size, the higher the resolution and clarity of the image, while larger pitch sizes result in lower resolution and coarser images.
3mm LED screen set up. 6.9 x 3.4m main screen, and 3.4 x 3.4m side screens on a 45 degree angle, with an overall pixel count of 4608 x 1152.
A smaller pitch size means that there are more LED lights in a given area, which results in a higher resolution and a sharper image. For example, an LED screen with a 2.5mm pitch size would produce a clearer and more detailed image than an LED screen with a 5mm pitch size.
However, it is important to note that a smaller pitch size also means a higher cost. LED screens with a smaller pitch size are more complex to manufacture and require more LED lights, resulting in higher costs for the manufacturer and for the end user.
For indoor LED displays, a pitch size of 2.5mm to 4mm is considered high-resolution and is suitable for close-up viewing. For outdoor LED displays, a pitch size of 4mm to 8mm is typically used as it provides a good balance between image quality and cost-effectiveness.
In conclusion, the pitch size is an important factor to consider when choosing an LED screen. A smaller pitch size results in higher resolution and clearer images, but also comes with a higher cost. The pitch size should be chosen based on the intended use and budget for the LED screen.
Shadow AV offers a range of LED screen options that are specifically designed to meet the unique needs of different types of events. Whether you're hosting a corporate event, trade show, music festival, or sporting event, Shadow AV has a variety of LED screens with varying pitch sizes, resolutions, and brightness levels to ensure that your message is displayed in the most impactful way possible. Contact us today to determine the best LED screen solution to bring your event or venue to life.
